Apollo Infini V4 WP IP66 Elite: Outdoor Waterproof Grid-Tie Hybrid Inverters
Engineered with extreme industrial IP66 weatherproof armor, dual independent high-current MPPT trackers (up to 18,000W PV harvest), 4.3" HMI capacitive color touch console, automatic 2x2 dual AC output load shedding, diesel generator synchronization, and 9-unit parallel scalability up to 99kW.
Apollo Infini V4 WP IP66 Elite in Motion
Watch the genuine Apollo Infini V4 WP IP66 Elite Series in high-definition video. Inspect the heavy IP66 outdoor weatherproof chassis, die-cast sealed glands, crimson racing accents, and 4.3-inch color touch interface.
Four Pillars of Apollo Infini V4 WP IP66 Elite
Engineered specifically to conquer Pakistan's harshest environmental realities: outdoor monsoon rains, scorching desert dust storms, heavy solar PV harvest up to 18kW, dynamic dual circuit protection, and multi-unit industrial microgrids.

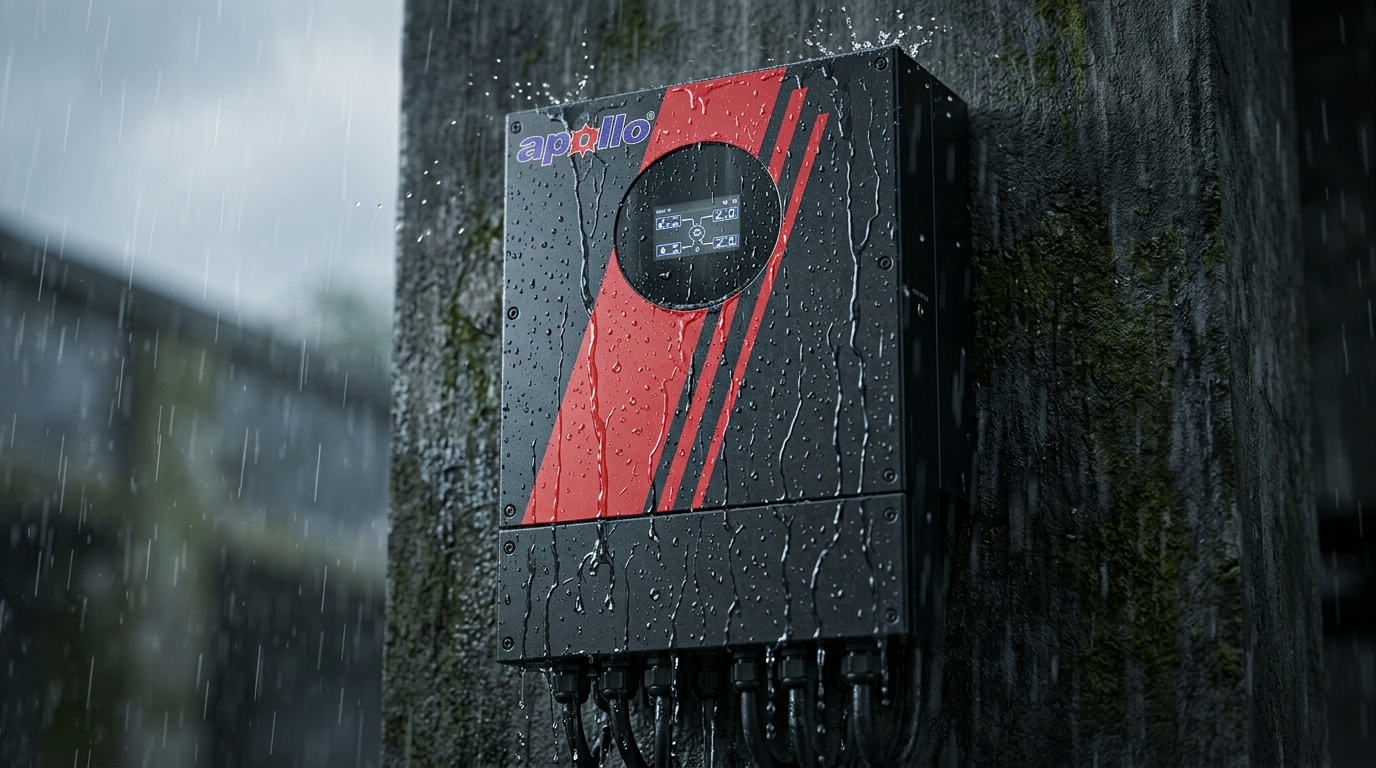

Certified IP66 Weatherproof Enclosure for Extreme Outdoor Mounting
No need for expensive dedicated inverter rooms or protective metal sheds. The Apollo Infini V4 WP Elite features a die-cast IP66 hermetic casing that completely repels high-pressure torrential rain, desert dust storms, and 0~100% non-condensing humidity.
- High-Pressure Jet Ingress Sealed: Complete gasket protection against driving torrential rains and airborne dust particles.
- Extreme Climate Thermal Operating Range: Operates flawlessly from -10°C in mountainous regions to +50°C ambient heat in Sindh and Punjab.
- Corrosion-Resistant Industrial Coating: Built to endure coastal saline humidity in Karachi and industrial zones without oxidation.
Dual Independent Trackers Harvesting up to 18,000W PV Power
Maximize every square foot of rooftop sunlight. Equipped with two completely isolated high-voltage MPP trackers supporting up to 18,000W of total solar panels (9000W per tracker on 11kW model) with up to 27A input current.
- Bifacial & N-Type TOPCon Ready: Handles ultra-high 21A to 27A input currents without clipping energy yield from 585W–700W+ panels.
- Ultra-Wide 120V – 450V MPPT Window: Starts harvesting early at dawn and keeps generating solar yield late into the evening.
- Asymmetric String Orientation: Orient East and West rooftop strings on separate MPPT channels for balanced all-day power.

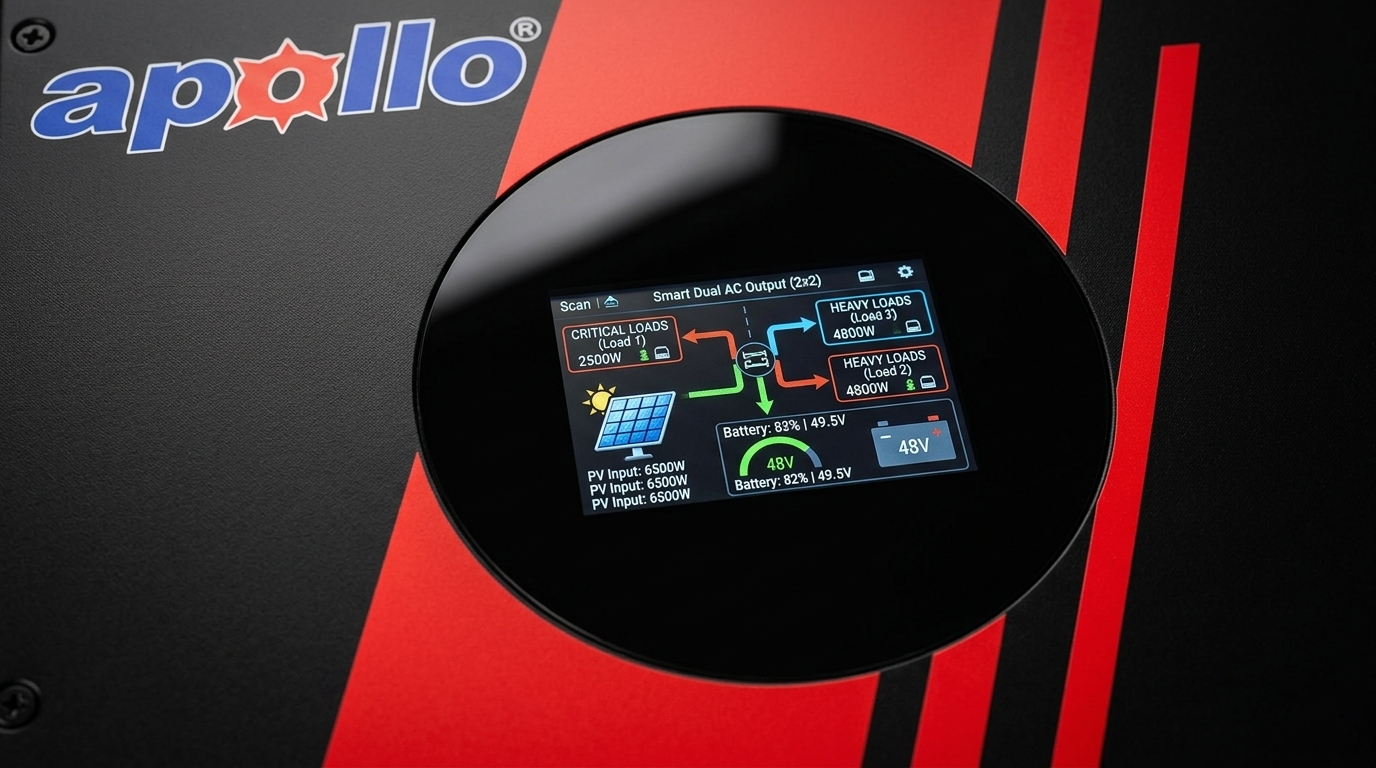

4.3" HMI Touchscreen & Smart 2x2 Dual AC Load Management
Complete operational authority at your fingertips. The vibrant 4.3-inch HMI capacitive touch LCD lets you program operational modes in seconds, while the automated 2x2 dual AC output protects critical circuits from battery collapse.
- 4.3" HMI Color Touch Display: View live energy routing, string voltages, battery state of charge, and grid export parameters.
- Automatic Dual Output Isolation (2x2): Primary output powers continuous critical loads (lights, fans, computers, fridge), while secondary output connects heavy ACs and pumps.
- Intelligent Dynamic Load Shedding: Automatically cuts off non-essential heavy AC loads during extended grid blackouts to safeguard battery runtime.

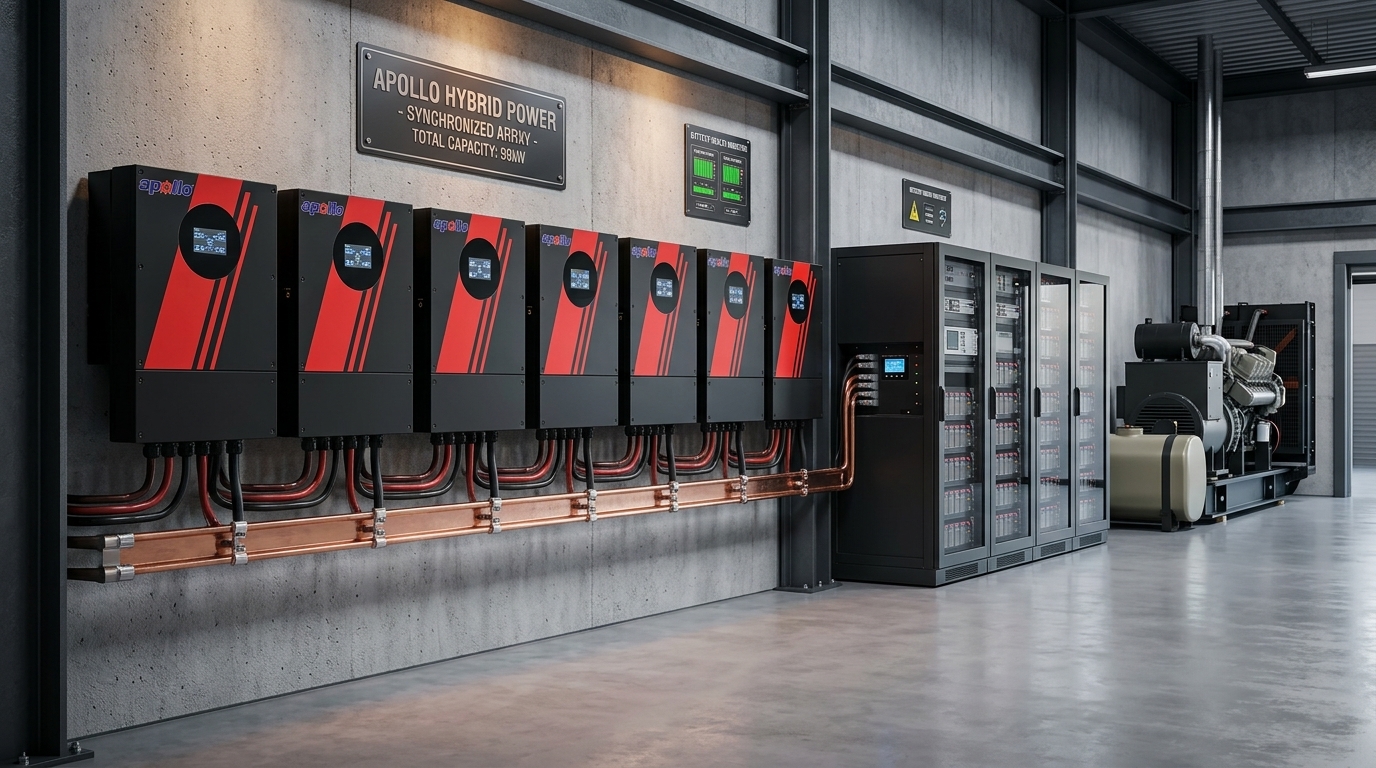

Parallel Operation up to 9 Units (99kW) with Diesel Generator Energy Storage
Build industrial-grade commercial microgrids. Combine up to 9 units in parallel on single-phase or three-phase setups to achieve 99,000W of uninterrupted hybrid capacity, seamlessly capturing energy from diesel generators.
- 9-Unit Parallel Expansion: Grow your system seamlessly from 7kW to 99kW without replacing your original inverter units.
- Diesel Generator Energy Harvesting: Connects directly to backup generator sources to charge batteries and supply loads at peak efficiency.
- Native RS-485 Lithium BMS Port: Seamless plug-and-play communication with Apollo Neptune 5.12kWh and 16.07kWh LiFePO4 batteries.
Outdoor Solar Generation & Heavy Load Sizing
Drag the slider to size your outdoor solar array from 7kW to 18kW. Calculate expected daily unit generation (kWh), simultaneous inverter AC runtime, and battery charging power.
Deconstructed Industrial IP66 Engineering
Drag the depth slider to pull apart the Apollo Infini V4 WP IP66 chassis in 3D perspective space, revealing the die-cast hermetic armor, 4.3" HMI console, high-frequency transformer, and sealed cable gland terminal block.
Official Technical Matrix Comparison
Verified engineering specifications for the Apollo Infini V4 WP IP66 Elite Series (7kW, 9kW, 11kW). All metrics certified to IEC/EN 62109 standards.
| Specification Category | Infini V4 WP 7 KW Elite | Infini V4 WP 9 KW Elite | Infini V4 WP 11 KW Elite (Flagship) |
|---|---|---|---|
| Enclosure Protection | IP66 Certified Enclosure (Waterproof & Dustproof Outdoor Mounting) | ||
| Phase Architecture | 1-phase In / 1-phase Out (220 / 230 / 240 VAC) | ||
| Rated AC Output Power | 7000 VA / 7000 W | 9000 VA / 9000 W | 11,000 VA / 11,000 W |
| Maximum PV Input Power | 12,000 W | 16,000 W | 18,000 W (Dual Trackers) |
| Maximum Charging Power | 7,000 W | 9,000 W | 11,000 W |
| Nominal Grid Output Current | 28.7 A | 37.4 A | 46.1 A |
| Grid Output Voltage Range | 184 - 264.5 VAC or 195.5 - 253 VAC or 182 - 260 VAC (Selectable) | ||
| Power Factor & Waveform | > 0.99 · Pure Sine Wave (THD < 3%) | ||
| Maximum DC/AC Conversion Eff. | > 97.0% (Peak Grid-Tie) · 93% Battery Mode | ||
| AC Start-up / Acceptable Range | 60 - 80 VAC / 180 VAC Restart · 90 - 280 VAC or 170 - 280 VAC | ||
| Maximum AC Input Current | 40 A | 60 A | 60 A |
| Maximum DC Input Voltage | 500 VDC (Open Circuit Voc) | ||
| MPPT Operating Voltage Range | 120 VDC ~ 450 VDC | ||
| MPP Trackers / Max Input Current | 2 / 21 A | 2 / 27 A | 2 / 27 A (Independent Trackers) |
| Battery Nominal DC Voltage | 48 VDC (Operating Range 40V ~ 60VDC) | ||
| Battery Types Supported | Lithium-ion (LiFePO4 with BMS RS485) / Lead-Acid / AGM / Gel | ||
| Max Solar Charging Current | 135 A | 190 A | 210 A Ultra-High Rate |
| Max AC Charging Current | 135 A | 190 A | 210 A |
| Smart Dual AC Output (2x2) | Yes, Independent Terminals for Critical Loads + Heavy Load Shedding | ||
| Diesel Generator Compatibility | Yes, Supports Direct Energy Capture & Dual AC Source Switching | ||
| Parallel Scalability | Yes, Parallel up to 9 Units (Scalable up to 99kW) | ||
| HMI Display & Communication | 4.3" HMI Color Touch LCD · RS-232, RS-485 (BMS), Wi-Fi, Dry-Contact | ||
| Dimensions (D x W x H) | 192 x 418 x 633 mm | ||
| Net Weight (kg) | 23.5 kg | 32.0 kg | 33.0 kg |
| Operating Temperature & Humidity | -10°C to +50°C · 0 ~ 100% RH (Non-condensing) | ||
| International Safety Standards | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-2/4, IEC 61683, IEC 62116, IEC 61727 | ||

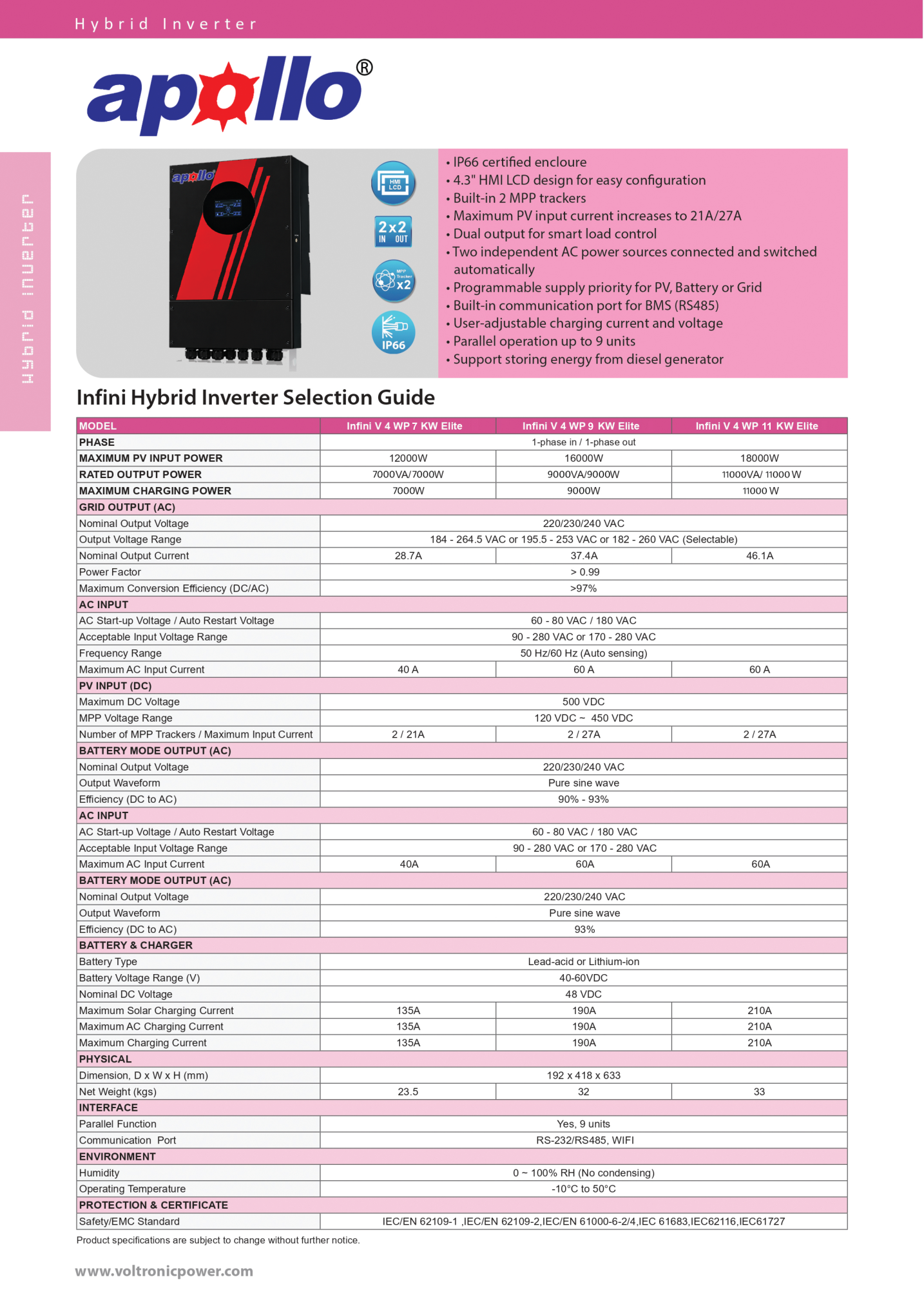

Download Official Apollo Infini V4 WP IP66 Elite Brochure
Get the original high-resolution specification document featuring IP66 enclosure tests, dual MPPT string sizing diagrams, 9-unit parallel microgrid schematics, and official warranty terms.
Frequently Asked Questions
Technical answers regarding outdoor IP66 installation, Dual MPPT sizing, diesel generator charging, and 9-unit parallel scalability.
